Benefits of Post Weld Heat Treatment (PWHT)
PWHT enhances weld quality by relieving residual stresses, improving ductility, reducing hardness, and minimizing the risk of cracking, ensuring longer service life and structural integrity in welded components.
Post Weld Heat Treatment (PWHT)
PWHT is a controlled process in which a welded metal area is reheated to a temperature below its lower critical transformation temperature, and then held at that temperature for a specified amount of time. Heat treatment performed after welding has a specific meaning within the oil, gas, petrochemical, and nuclear industries. Industrial codes, such as the ASME Pressure Vessel and Piping Codes, often require mandatory PWHT on certain metals to ensure a safe design with optimal mechanical and metallurgical properties.

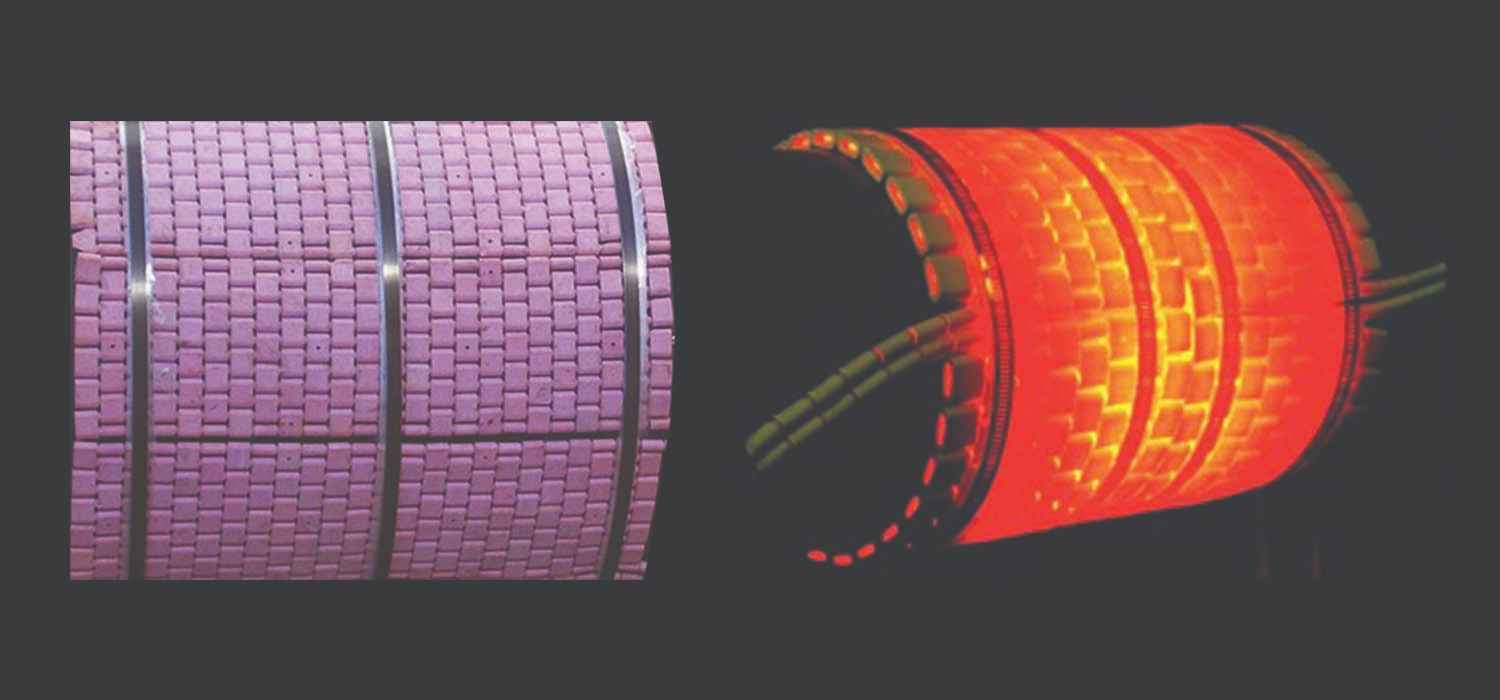

Resistance heating is widely used for PWHT. Ceramic tiles placed on the base metal are heated from energy released by the conductive wire resistance to electrical current. The heated ceramic tiles transfer heat from the attached conductive wire to the base metal through radiant and conductive heat where the pads are in contact with the metal. PWHT temperature is controlled by regulating the electricity running through the conductive wire.
Preheating

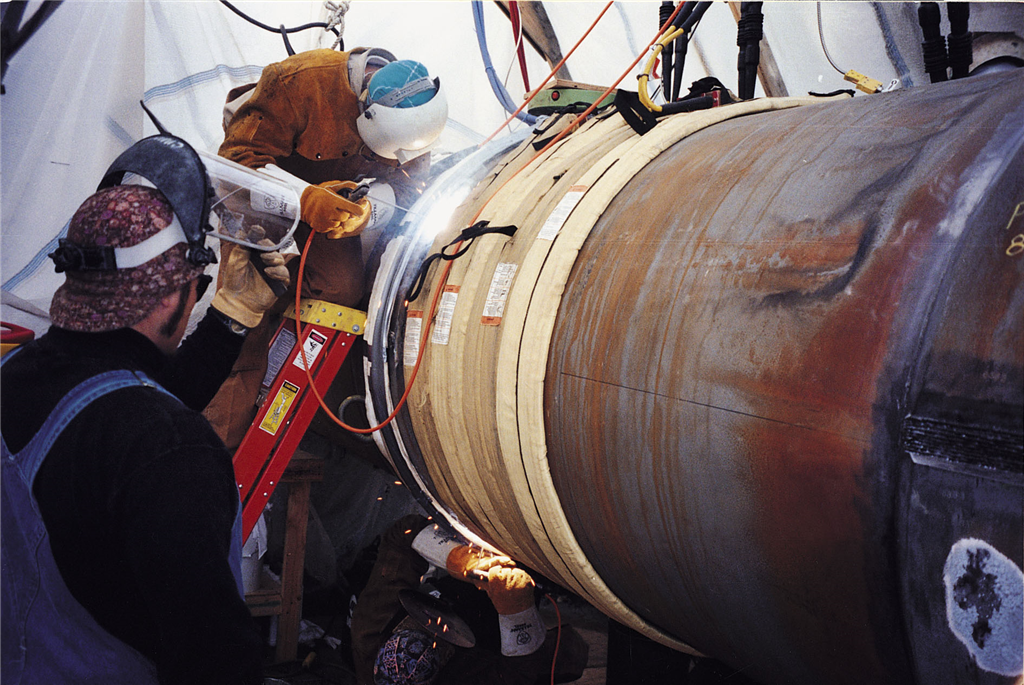

Welding Preheat is widely used in industries such as construction, oil & gas, and shipbuilding to ensure weld quality. An area around the weld joint, or the entire part, is preheated to a specified temperature before welding. Preheating the weld (area) eliminates moisture, which in turn prevents hydrogen buildup in the weld and the potential for a failure. Minimizing the temperature gradient between the welding arc and the base material slows the weld cooling rate and lowers hydrogen content, two factors that also help eliminate weld “cracking.”
Several options can be used for welding preheat, including open flame, resistance heating, induction, and convection ovens. For open flame, operators use a fuel gas and compressed air torch to apply heat directly to the metal part.
Preheating Process
Preheating involves heating materials or components to a specific temperature before welding or other processes to reduce residual stress and improve weld quality and material performance.
